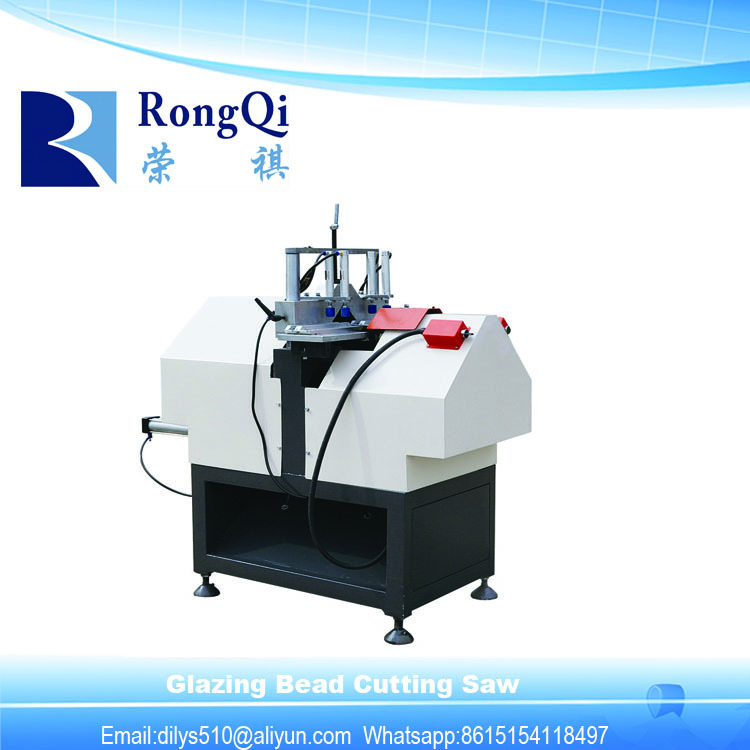

PVC Window Fabrication Glazing Bead Cutting Saw
PVC Window Fabrication Glazing Bead Cutting Saw
Production Name: Glazing bead saw
♦ Used for cutting of the glazing bead at 45°,and milling of the presser
foot.
♦ Special measuring scale, easy to operate.
♦ It is used to cut two pieces of battens at the same time, which
ensured high efficiency.
Features: ♦ It can be equipped with adjustable batten shim plate, no need to
replace the shim plate when replacing the profiles, avoiding
reinvestment and reducing the production cycle of doors and
windows.
♦ Adjustable positioning plate is equipped with the inner micrometric
setting, which ensured of the inner vertical angle after the assembly
of battens..
Technical Parameters:
Power Supply | 380V 50Hz |
Motor power | 2X0.75Kw |
Operation Air Pressure | 0.5~~0.8Mpa |
Air consumption | 20L/min |
Main shaft rotary | 2800r/min |
Cutting Height | < 33mm |
Cutting Width | < 100mm |
Length processing scope | 350~1800mm/320~1800mm |
Contour Dimension | 2600X2100X1350mm |
Weight | 450kgs |
